Getting Started

Understanding Home and Teams

On your dashboard, you will find Home and Teams, where Home is for your personal drawings and Teams are for your team drawings. It is strongly recommended that you should start by creating a team.

Home and Teams on the dashboard
Home and Teams on the dashboard

Why you should create a team

Creating a team would let you add team members, where all subsequent drawings created in the team would be automatically shared to all members. This drastically improve productivity and reduce the amount of effort required to share drawings with your team.

Even after a team is created, you can still add or remove members to ensure your new member get access to all drawings automatically.

How to create a team
How to create a team

Team members can be set to differing permissions (owner, edit and share, view only), where all subsequent drawings will continue to inherit these permissions.

In addition, each and every drawing in the team can be further customized to have different permissions. For example, all drawings are available to members except 3 drawings, which are viewable and editable only by certain members.

Understanding the editor

The editor is divided into stencils on the left and drawing area on the right, where stencils are a collection of symbols which you can drag and drop onto your drawing. Most symbols are designed to display multiple forms, so please do right click and explore options.

Stencils and symbols
Stencils and symbols

How to create a new drawing

Users can create a new drawing from the dashboard by using the Create button, or use a template by clicking on the template's New button.

Creating a new drawing in the dashboard
Creating a new drawing in the dashboard

We recommend using a template as it can be customized to load their own stencils and content, for easier and faster completion of circuits.

How to create circuits

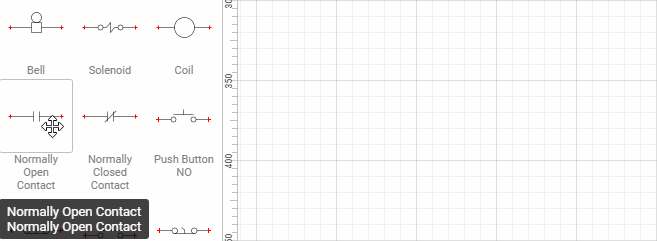

Creating circuits is as simple as dragging and dropping symbols from a stencil onto your drawing. All wires and symbols will be automatically and incrementally renamed to the next sequential number.

Easy drag and drop to create circuits
Easy drag and drop to create circuits

Real time cross referencing

To view real time cross reference or to edit a symbol, double click or right click on the symbol or wire and you will be able to access the Edit reference or the Wire name window.

The Edit reference window
The Edit reference window

How to reposition text

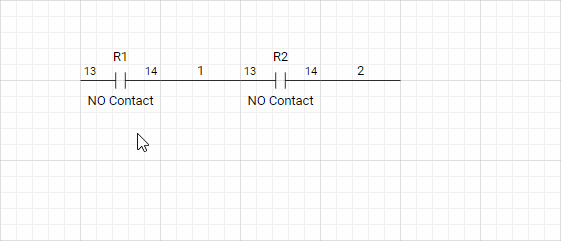

Symbols and wires in Electra have yellow control handles that allows you to reposition text easily by dragging on their yellow handles.

How to move text using control handles
How to move text using control handles

How to use connection points

Connection points allow a shape to connect to another. In Electra, connection points allow wires to be connected to symbols.

Connection points on a motor symbol
Connection points on a motor symbol

Connection points are only visible when you attempt to connect a shape to another using wires or connectors. These connection points will only be shown on the editor, and will not be printed on hard copies.

Automatic connection points on wires

When a wire is dropped on another, Electra automatically creates a connection point, connect the wires together, and insert a connection dot to denote a connection. When a wire is moved away, Electra automatically deletes the connection points. Connection dots can also be manually turned on or off by right clicking on a wire.

Wires automatically connect and insert connection points
Wires automatically connect and insert connection points

In addition, you can easily add connection points to any shape by first clicking on a shape, then clicking on the connection point tool, and then pressing CTRL key and clicking on anywhere you would like to add a connection point.

The connection point tool
The connection point tool

Creating and using title blocks

Electra includes powerful title block shapes that let users generate Table of Contents and modify information that affects a page or the entire document.

Drag and drop intelligent title block shapes from the Title Block stencil or create your own shape by using menu Electra | Title Blocks | Insert Title Block Data.

The anatomy of a title block
The anatomy of a title block

Once you have placed all necessary title block shapes, group them together and click menu Electra | Title Blocks | Create Title Block, and Electra will automatically insert data and intelligence to create your custom title block.

To use your custom Title Block, simply drag and drop them onto your drawing and Electra will automatically center your title block. Right click on your title block and select Edit Title Block to edit title block information.

How to use page prefixes

One of the most powerful tools in Electra is page prefix and users can use them on both symbols and/or wires. Page prefix adds a page number in front of your symbol reference or wire name and automatically keeps track and updates this page number even when you re-order your pages, all automatically.

Automatic page prefix in Electra
Automatic page prefix in Electra
