Shape properties and formulas

Capital Electra X's powerful Shape Properties allows you to view and edit a shape exactly the way you wanted, by typing in exact dimensions, even with expressions and multiple units.

Shape properties dialog
Shape properties dialog

Viewing Shape properties

To view the Shape Properties dialog:

  • Click on menu View | Show Properties

Whenever you modify your shapes, Capital Electra X will automatically show changes to dimensions on shape properties.

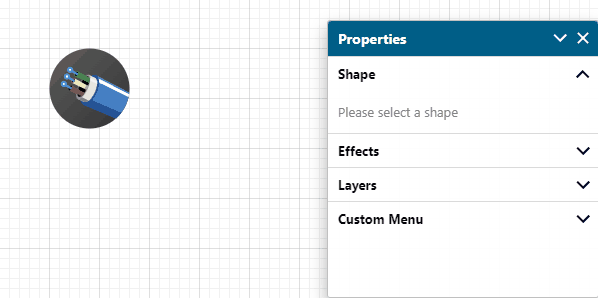

View changes to shapes on Shape properties
View changes to shapes on Shape properties

Adding a field

To add more fields to view:

  • Click on the + icon on Shape Properties and select a field
Adding a field
Adding a field

Removing a field

To remove an added field, just hover on the field and click on the Trash icon.

Fields shown by default not removable.

Removing a field
Removing a field

Entering values

To change a shape dimension:

  • Click on the field and type away
Entering values on Shape properties
Entering values on Shape properties

Entering units and expressions

To enter expressions and units:

  • Click on a field and type away

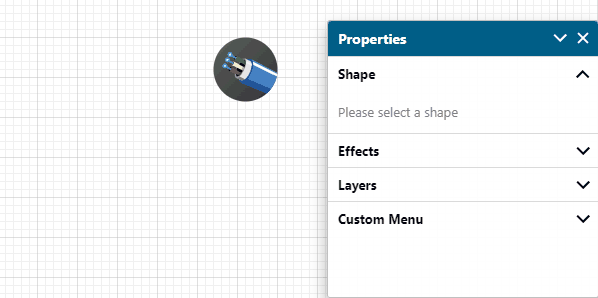

Entering expressions and units on Shape properties
Entering expressions and units on Shape properties

Capital Electra X accepts px, in, cm and mm for all length units.

Locking aspect ratio

To resize a shape with locked aspect ratio:

  • Click on the Aspect ratio icon

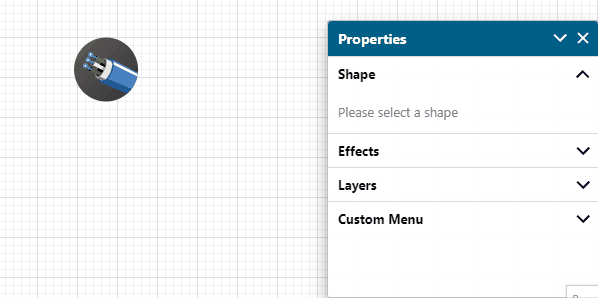

Locking aspect ratio on Shape Properties
Locking aspect ratio on Shape Properties

Viewing and entering formulas

To view formulas:

  • Click on the Formula icon

Example: Create a shape with constant width

  • Click on a shape, then on Formula icon
  • Enter a formula on the width field
  • Switch back to Value view by clicking on Formula icon again
Example: Shape with constant width formula

The shape will now always use the formula as width, while height is still adjustable.

The width field will now be disabled, because it has a formula, but the resulting value from the formula will continue to be shown.

Example: Create a shape that adjust to text height

  • Click on a shape, and enter some text, then click on Formula icon
  • Enter the following formula on the height field: this.textHeight() + 20
  • Click on the shape again, or enter another line of text
Example: Shape that automatically adjust to text height

To find out more information on formulas and functions, please visit Capital Electra X's open API.

Deleting a formula

To delete a formula from a field:

  • Click on the formula icon, then select the formula and press Delete key

Editing formulas on the mini editor

To edit formulas on the mini editor:

  • Click on the field menu to the right of the formula, and select Edit Code
Editing code on the mini editor
Editing code on the mini editor

Automatically minimizing Shape properties

Capital Electra X's Shape properties dialog is smart, and you can drag over it, to automatically minimize.

Automatically minimizing Shape properties

To expand the Shape properties:

  • Click on the Shape properties expand icon

Viewing text properties

To view text properties on a shape:

  • Click on the Text block tool

Editing text line spacing

To adjust text line spacing:

  • Click on a shape

  • Click on the Text block tool

  • Edit text line spacing in the LineSpacing field

Assigning name to shapes

Each shape can be assigned a name which acts like a unique identifier. To assign a name to a shape:

  • Click on a shape

  • Add a name field in Shape properties

  • Type in a name for the shape

Note that the name of a shape are unique, hence a unique ID will automatically be appended if same name is used for multiple shapes.

Assigning name to shapes

Automatically incrementing shapes

Automatically incrementing shapes can be useful if you want to have a separate labels for your shapes.

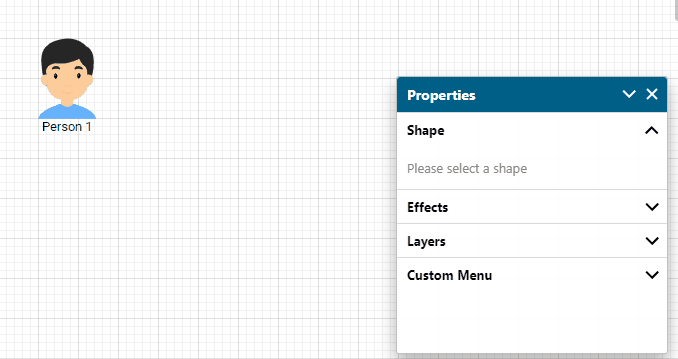

Automatically incrementing shapes
Automatically incrementing shapes

The increment field accepts boolean true or false, in addition to a regex. If a regex is entered, it must contain a capturing field, and Capital Electra X will use the first capturing field to increment.

Let's say we want to name our shapes "1 Person", "2 Person" and so forth. Therefore our regex will be:

(\d) \w+

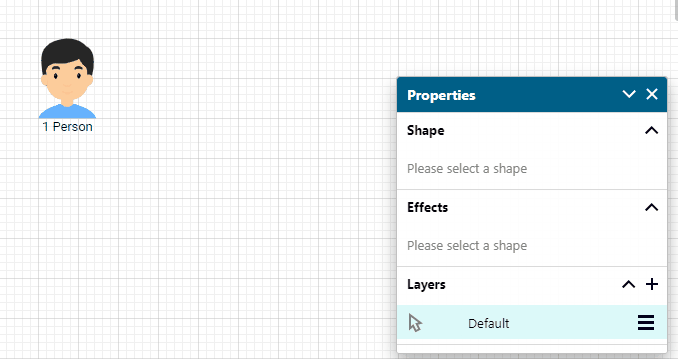

Automatically incrementing shapes using regex
Automatically incrementing shapes using regex

Resizing line end (arrow)

To adjust line end sizing:

  • Click on a path with line end

  • Resize the line end in the BeginSize and EndSize field

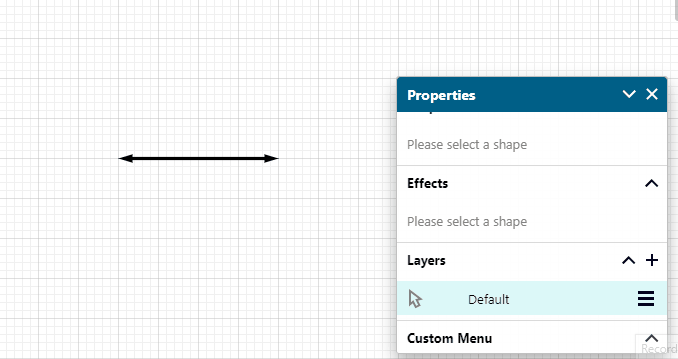

Resizing line end (arrow)
Resizing line end (arrow)

How to use color palette in custom properties

To access color palette:

  • Click the + button
  • Choose fill option in the field selection
  • Click the palette icon to open color palette
Choosing fill property
Choosing fill property
Color palette in shape properties
Color palette in shape properties

Repeat transformation

To repeat transformation:

  • Select a shape

  • Modify the selected shape transformation. Eg: x, y, width, height and etc.

  • Select another shape that you wish to repeat the transformation

  • Press ALT + R to apply the transformation.
